SunPlus DVD Mod

After some fiddling around, I found a way to mod my cheap China made DVD..

Here is a typical ACE DVD Player:

Inside of my ACE DVD Player.

This is how my DVD standby screen before the modification:

After the mods..

ByteBlaster SPI (EN25T80) Programmer

ByteBlaster SPI (EN25T80) Programmer

Here is my DIY version of ByteBlaster EN25T80 SPI/JTAG Programmer.

Parts placement guide.

Copper side of the PCB.

Ang landi di ba??

Parts stuffing..

and the complete programmer...

With all the glory and beauty!

Yes! Finally....it's working!

EN25T80 Test Read and ID.

Latest revised PCB with power and write LED added...

Power and activity LED added.

Latest PCB with power and activity LED's!

Copper Side.

Kit will be available next week...:D

Some Parts To Play With

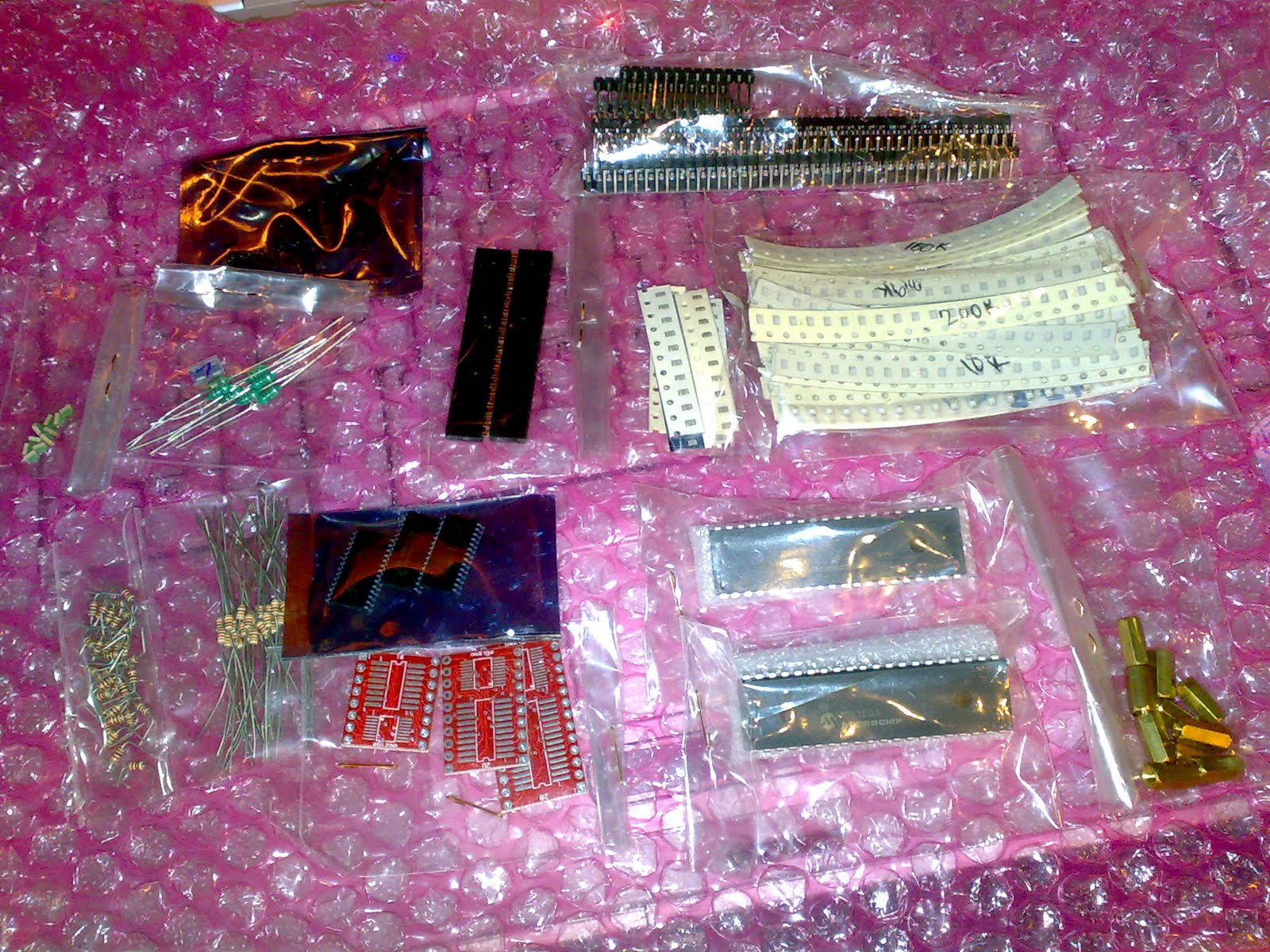

Just receive some hardware and electronic parts mostly SMD for me to play with...:D

PIC18F2550 SOIC, SMD resistors and caps..

PIC16F877, brass stand-off, coils, headers etc..

AVR ISP My New Toy

Here's my new toy...

The Atmel AVR ISP is an In-System Programmer for Atmel’s AVR Flash Microcontrollers. The AVR ISP gives the designer a compact and reliable programming tool to program all In-System Programmable AVR microcontrollers through a 6- or 10-pin ISP connector.

The AVR ISP uses AVR Studio®, Atmel’s Integrated Development Environment (IDE) for code writing and debugging. The programming software can be controlled from both a Windows® environment and a DOS command-line interface.

The AVR ISP kit includes the following features:

	AVR Studio Interface
	ISP Programming of all In-System Programmable AVR Devices
	Programs both Flash and EEPROM
	Supports Fuse and Lock Bit Programming
	Supports RC Oscillator Calibration
	Upgradeable to Support Future Devices
	Operates at Voltages from 2.7V to 5.5V
	Adjustable Speed. Supports all Target Boards Running at a Speed Higher than 8 kHz
	RS-232 Interface
	Powered from Target. No need for Additional Power Supply

My PICPgm USB Programmer

Here is my version of PICPgm USB Programmer. Hopefully FT245BM will be mounted tomorrow using HOT AIR soldering station..

PCB after iron-on.

PCB ready for etching.

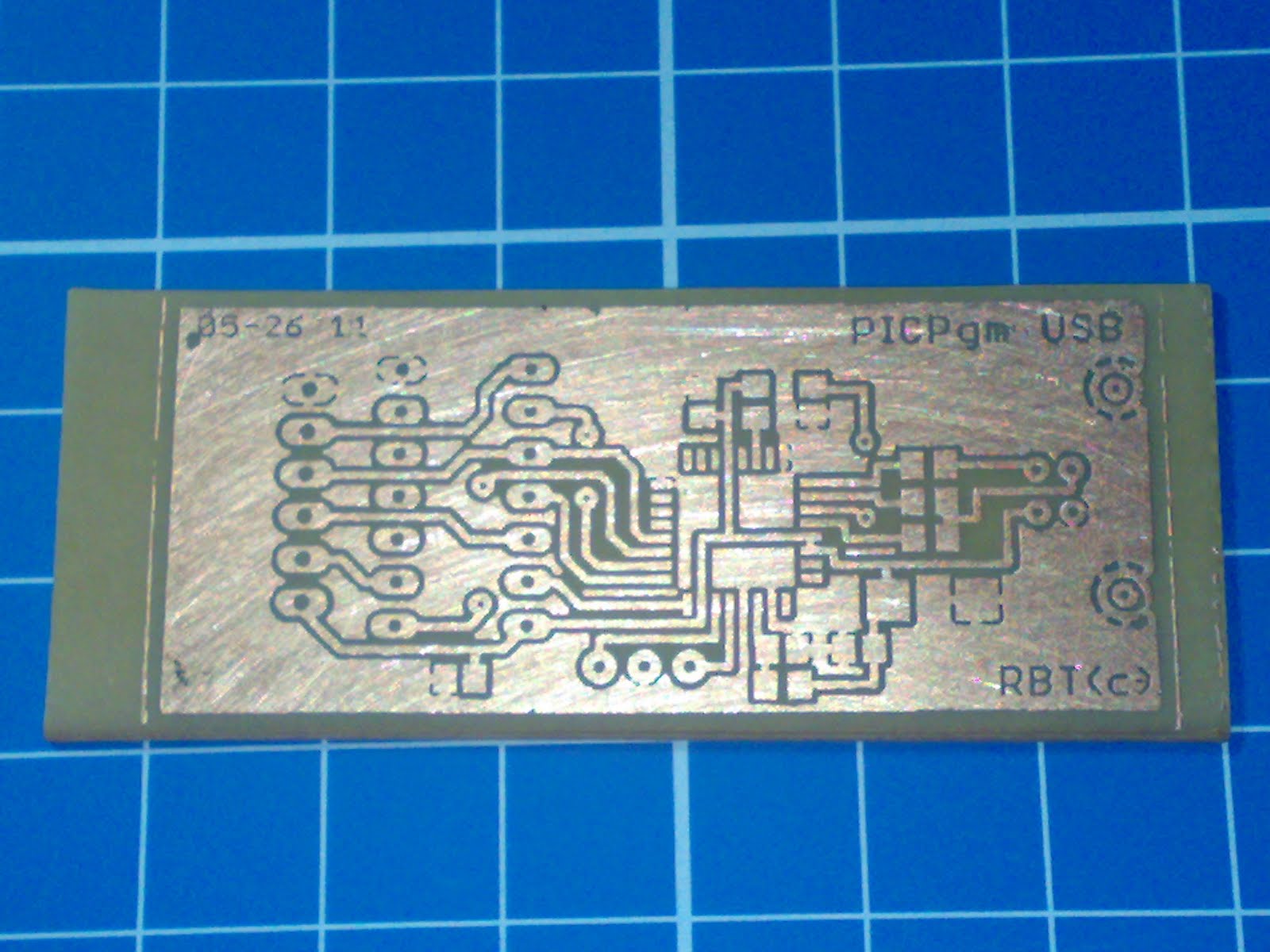

Etch and cleaned PCB ready for drilling.

Close-up view of FT245BM pads.

Test mounting FT245BM.

Can't wait for daylight...just installed the FT245BM using fine tip soldering iron..:D

All done! Take some time to review all my soldering and parts placement...

Board after baking..:D

TH components installed.

The looks and the glory of my mighty little USB Programmer.

Time to test this beast if its gonna work...

Wow! Detected as USB Serial..

Success!! USB Programmer detected!

Trying on latest version..

Programmer detected! :)

Waiting for final test! ACTUAL PIC PROGRAMMING....:D

Download:

PICPgm Schematic and PCB in Eagle format


more to come....
